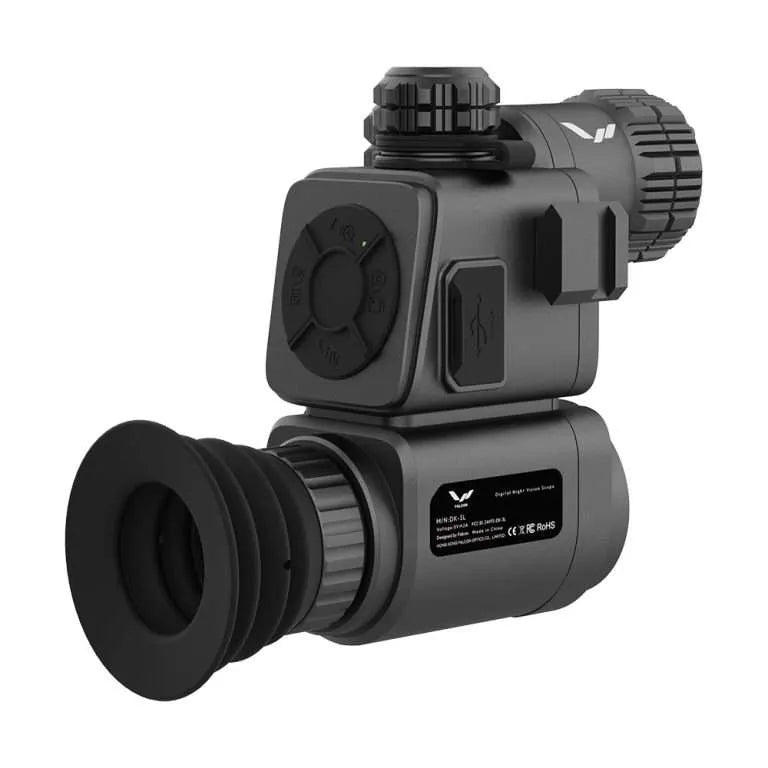

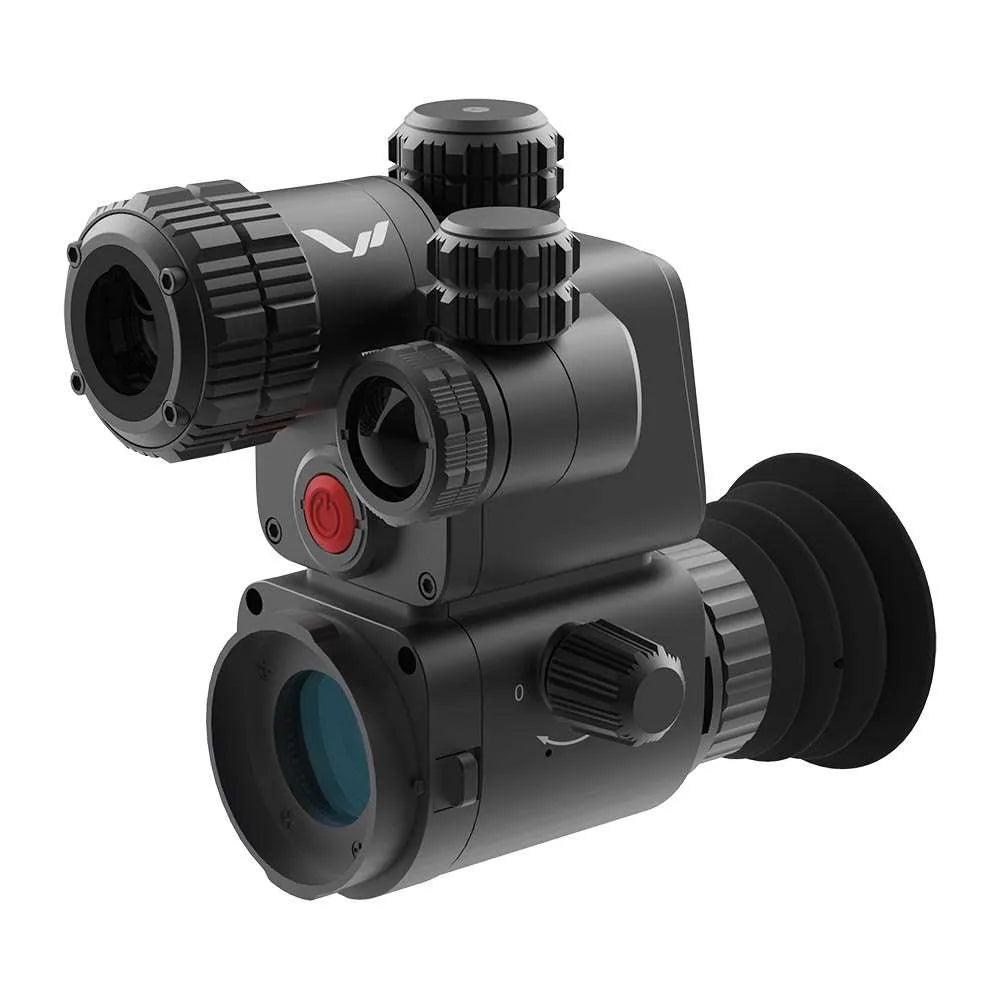

Falcon Dark 3L 4K Night Vision Clip-On with LRF & Dual Wavelength IR (850/940nm)
Falcon Dark 3L 4K Night Vision Clip-On with LRF & Dual Wavelength IR (850/940nm)
Falcon Dark 3L 4K Night Vision Clip-On with LRF & Dual Wavelength IR (850/940nm)
World-first dual IR + 4K clarity. The Falcon Dark 3L is a high-resolution 4K night vision clip-on that mounts in front of your existing day scope. Instantly switch between near-invisible 940nm and long-reach 850nm infrared at the twist of a top dial, and range targets precisely with the integrated 1000 m Laser Range Finder (LRF). A crisp AMOLED 1024×768 display, onboard photo/video, and Wi-Fi viewing round out a compact, IP67-rated unit built for New Zealand conditions.
- 4K CMOS sensor (2592×1944) for detailed night imagery
- Dual free-switch IR: 850 nm for range & brightness, 940 nm for stealth
- Integrated LRF to 1000 m for confident holds & ranging
- AMOLED 0.39″ 1024×768 display with wide 24.4°×18.4° FOV
- Clip-on design with included 45 mm adapter (42/48 mm optional)
- 3D gyroscope, photo/video recording, Wi-Fi app view
- 18650 (3500 mAh) power, up to 6 hrs runtime at 22 °C
- IP67 weatherproof, tested to up to 6000 J recoil
Why dual-wavelength IR matters (850 nm vs 940 nm)
Switch to 850 nm when you need maximum illumination and distance. Flip to 940 nm when you want the most covert beam with minimal visible glow. The Falcon Dark 3L lets you change wavelength instantly via a top selector—no extra torches, no re-mounting.
Key Specifications
Sensor & Optics
| Sensor Type | CMOS |
|---|---|
| Sensor Resolution | 2592×1944 (4K class) |
| Objective Focal Length | 12 mm |
| Magnification | 1× – 3.5× (digital) |
| Field of View | 24.4° × 18.4° |
| Dioptre Adjustment | +5 / −5 D |
| Min Focus Distance | 0.1 m |
Display & Recording
| Display | 0.39″ AMOLED, 1024×768 |
|---|---|
| Photo/Video Resolution | 2304×1728 |
| Formats | .jpg / .mp4 |
| Storage | MicroSD/TF up to 128 GB (FAT32, card not included) |
| Connectivity | Wi-Fi 2.4 GHz (802.11 b/g), ~15 m LOS |
IR & Rangefinding
| IR Wavelengths | 850 nm and 940 nm (switchable) |
|---|---|
| LRF Wavelength | 905 nm |
| LRF Max Range | 1000 m (±1 m accuracy) |
Power & Build
| Power | 1× 18650 Li-ion (3500 mAh) |
|---|---|
| External Power | USB 5 V |
| Runtime | Up to 6 hours @ 22 °C |
| Recoil Resistance | Up to 6000 J |
| Ingress Protection | IP67 |
| Operating Temp | −20 °C to +50 °C |
| Dimensions | 144.5 × 75 × 124.3 mm |
| Weight | 416 g |
Mounting & Compatibility
- Included adapter: 45 mm
- Optional adapters: 42 mm, 48 mm
- Clip-on front of most day scopes (ensure objective bell size matches adapter)

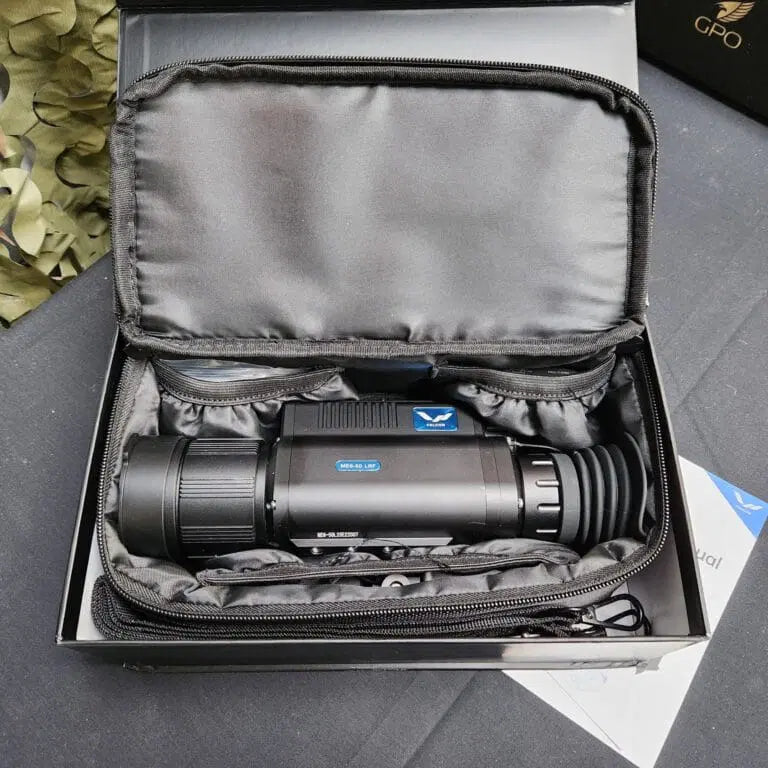

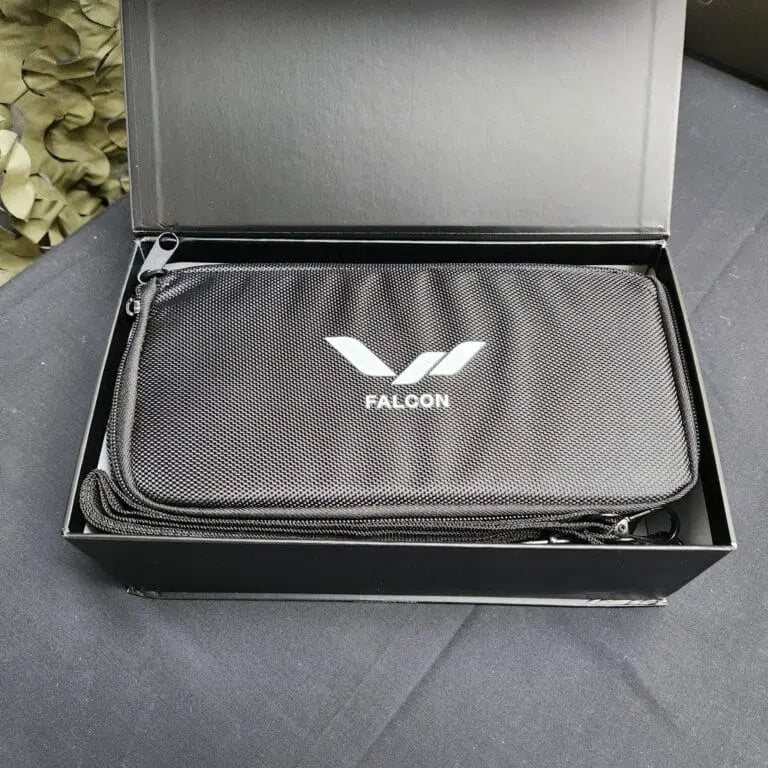

What’s in the box
- Falcon Dark 3L Clip-On (with integrated dual-IR & LRF)
- 45 mm clip-on adapter (others optional)
- 18650 battery (if supplied by bundle) & USB cable
- Protective caps & basic tools
- Quick start guide
Shipping, Warranty & Local Support (NZ)
- Fast NZ shipping & pickup available from Rolleston.
- NZ warranty & local support. We stand behind the brands we sell.
- Questions on adapter sizing or scope fit? Contact us and we’ll match it for you.
FAQs — Falcon Dark 3L
Will it fit my day scope?
When should I use 850 nm vs 940 nm IR?
How long does the battery last?
Is it waterproof?
What recoil can it handle?
Note: Specifications are provided by the manufacturer and may be updated without notice. Images are illustrative. Always follow local laws and safe handling practices.
