Oneleaf NV100 Plus 3-12×56 Day & Night Vision Rifle Scope
Oneleaf NV100 Plus 3-12×56 Day & Night Vision Rifle Scope
Oneleaf NV100 Plus 3-12×56 Day & Night Vision Rifle Scope

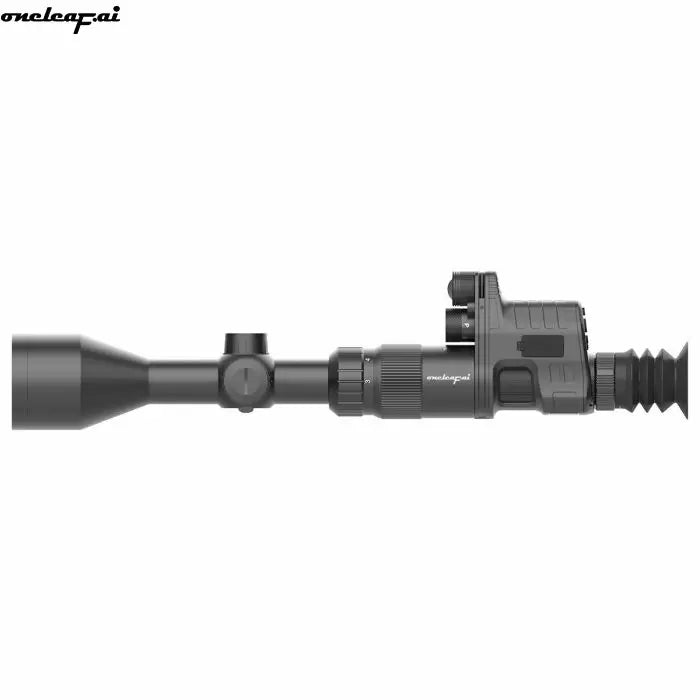

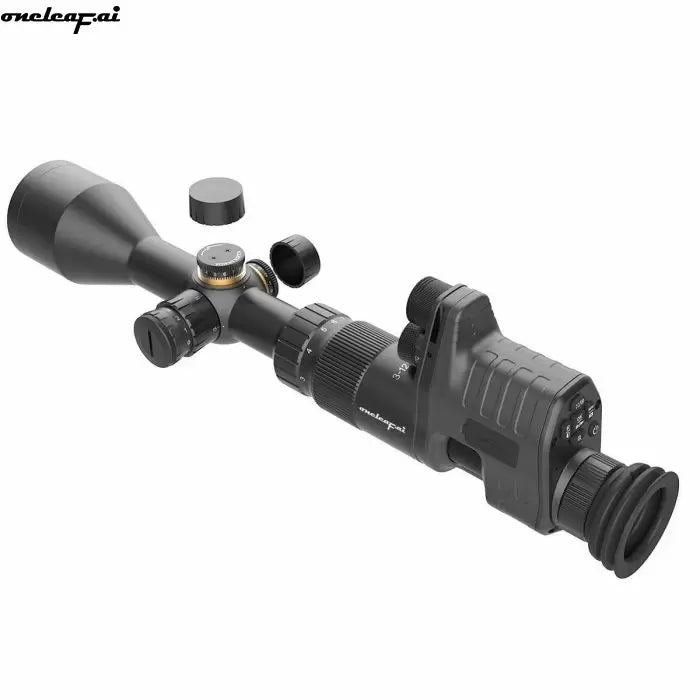

Turn your daytime scope into a full night vision system with the Oneleaf NV100 Plus and Rapidfire 3-12×56 riflescope combo. Engineered for hunters, pest controllers, and outdoor professionals, this setup delivers exceptional 1080p clarity, reliable infrared illumination, and rugged performance for New Zealand conditions.

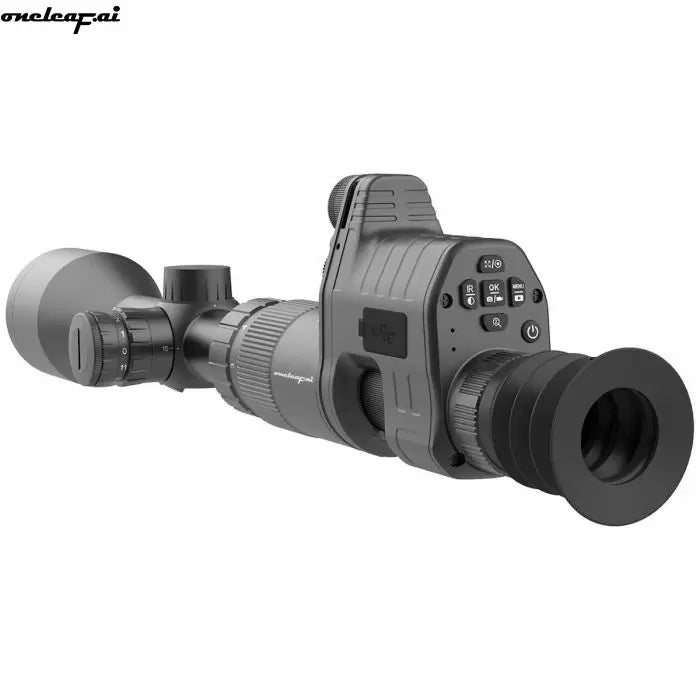

🔭 NV100 Digital Night Vision Module
- Sensor: Sony STARVIS CMOS, 1920×1080 resolution
- Display: 0.4″ panel, 3.69 million dots, 60 fps refresh rate
- Recording: Built-in video recorder & screenshot function
- Supported SD Card: Up to 256 GB (saves files even if power is disconnected)
- Video Format: H.265 / TS, 1080p or 720p @ 30 fps
- Photo Format: JPEG (1080p / 720p)
- Storage Capacity: Approx 49 hours of video on a 256 GB card
- Digital Zoom: 1× – 3×
- Lens: 16 mm F1.8 (3 cm – ∞ focus range)
- Eye Relief / Diopter: 25 – 70 mm / -8 to +4 adjustment

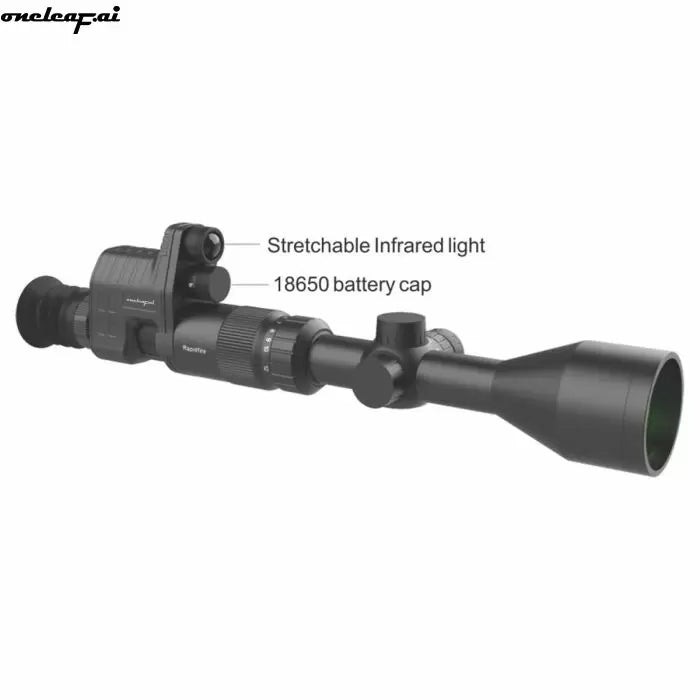

- Infrared Emitter: 6 W / 850 nm LED with 6 power levels (6000 mW output)
- Night Vision Sensitivity: Operates to 0.0001 Lux; effective range ≈ 300 m / 328 yd
- Power Supply: 5 V–5.5 V via micro-USB (rechargeable 18650 Li-ion battery)
- Battery Life: ≈ 6 hours continuous use
- Construction: Aluminium & ABS/PC body; shock resistant (9000 J); IP weather-sealed
- Display Adjustments: Brightness, contrast, sharpness, and sensor saturation
- Special Modes: Slow-motion ×2 / ×4 / ×8 video playback
- Field of View: 37° – 42°
- Dimensions & Weight: 130 × 52 × 95 mm (≈ 340 g / 12 oz)
- Operating Temperature: -30 °C to +50 °C (-22 °F to +122 °F)

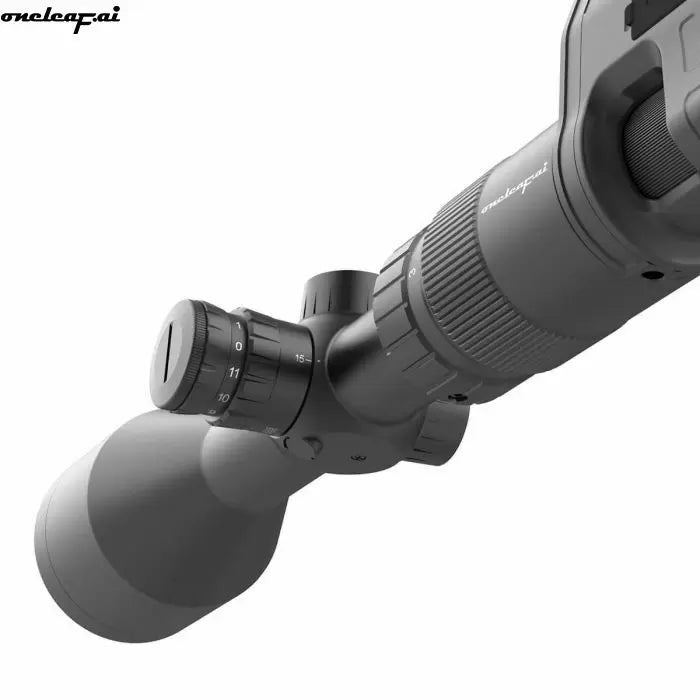

🎯 Rapidfire Plus 3-12×56 Day / Night Rifle Scope
- Optical Zoom: 3× – 12×

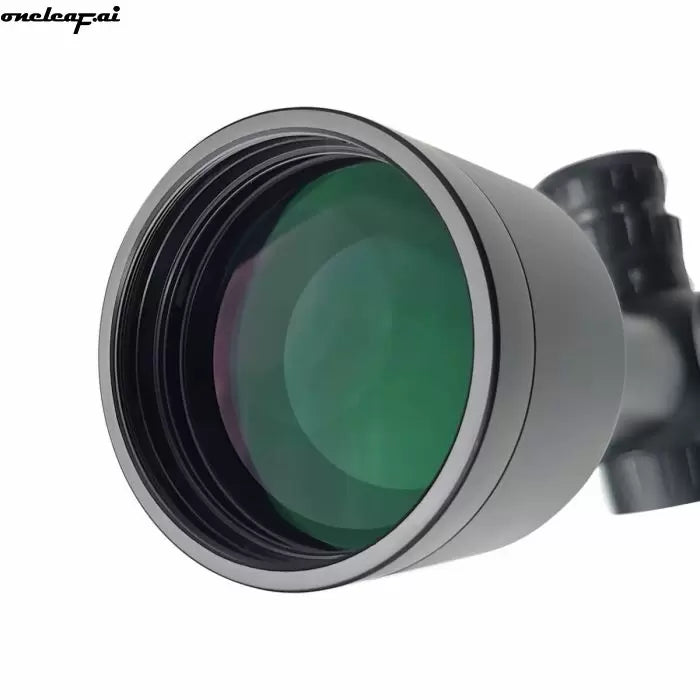

- Objective Lens Diameter: 56 mm fully multi-coated lens
- Click Value: 1/8 MOA (0.125 MOA per click)
- Adjustment Range: Elevation 70 MOA / Windage 70 MOA
- Field of View @ 100 m: 12.3 m – 3.5 m (7.0° – 2°)
- Eye Relief: 82 – 100 mm
- Exit Pupil: 18.7 – 4.7 mm
- Parallax / Focus: Side focus (100 yd reference)
- Reticle: MIL-Line design with 11-level illumination (2nd focal plane)
- Tube Diameter: 30 mm / 1.18 in aircraft-grade aluminium
- Finish: Matte black hard-anodised surface
- Waterproof & Anti-fog: Yes – nitrogen-purged construction
- Battery (Type): CR2032 for reticle illumination
- Weight: ≈ 802 g

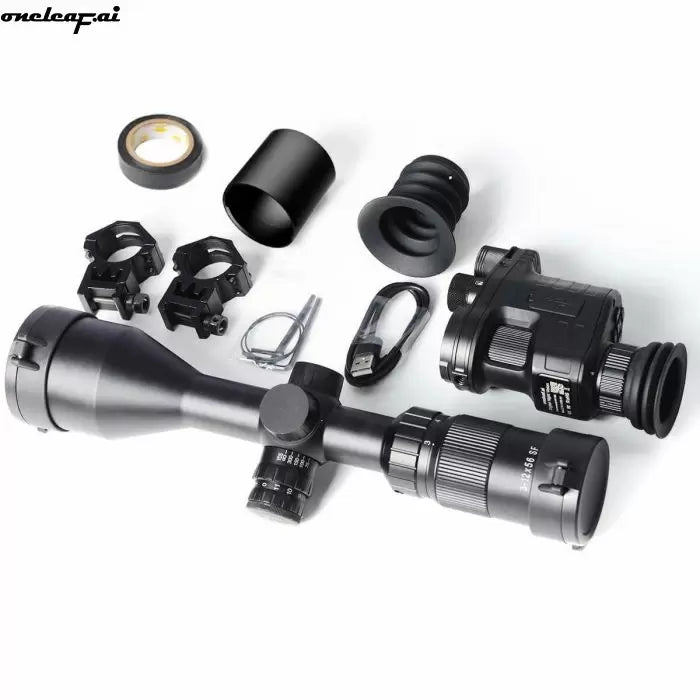

📦 Package Includes
- Rapidfire 3-12×56 Rifle Scope
- NV100 Digital Night Vision Module
- Adapter / mount for NV100 attachment
- Picatinny mounting rings & hardware
- USB-C charging cable & HDMI lead
- User manual & protective carry case
🌙 Why Choose the Oneleaf NV100 Plus System?
• Transforms your rifle into a true day / night setup without zero shift.
• 4K-ready sensor clarity with low-light performance down to 0.0001 Lux.
• Rugged IP-rated design built for New Zealand’s conditions.
• Simple attachment — no re-sighting or recalibration required.
• Ideal for pest control, farm security, and professional shooting applications.
⚙️ Technical Summary
| Model | Oneleaf NV100 Plus + Rapidfire 3-12×56 Scope |
|---|---|
| Sensor | Sony STARVIS CMOS 1080p |
| Zoom Range | Optical 3-12× + Digital 1-3× (Combined Max ≈ 36×) |
| IR Power | 6 W / 850 nm LED (6 adjustable levels) |
| Night Detection Range | Approx 300 m / 328 yd |
| Recording Format | Video H.265 / TS – 1080p; Photos JPEG |
| Memory | 64 GB included / supports up to 256 GB micro SD |
| Power / Battery | 18650 Li-ion (≈ 6 h life) + CR2032 (reticle) |
| Construction | Aluminium & ABS/PC, IPX sealed, shock resistant to 9000 J |
| Weight (total) | ≈ 1.15 kg combined |
💡 Usage Tips
• Mount securely on a Picatinny or Weaver rail using supplied rings.
• Use Class-10 or UHS-I SD cards for video recording.
• Clean lenses only with a microfiber cloth to protect coatings.
• Avoid pointing the sensor toward bright light sources for extended periods.
• Firmware updates and support available through WhiteHot.nz – official NZ agent for Oneleaf.
