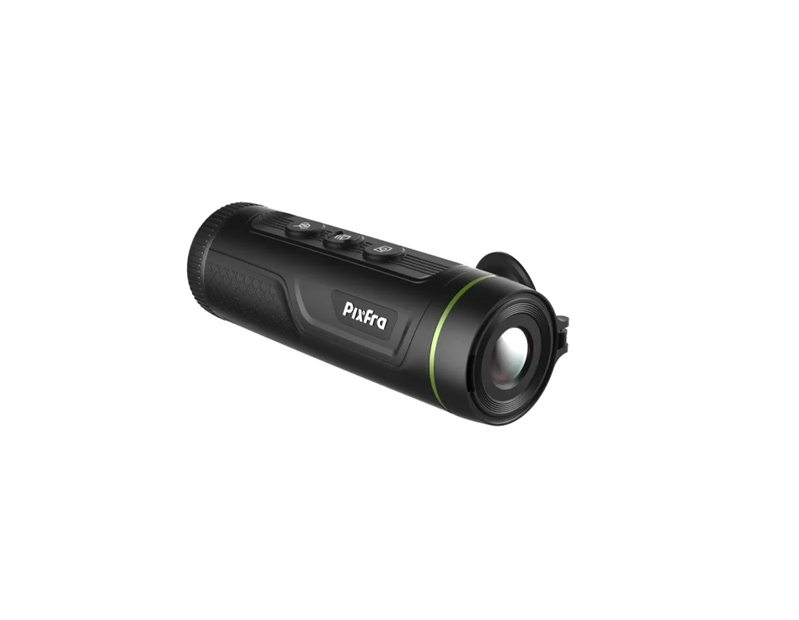

Pixfra Mile 2 M215 800M Thermal Monocular

The Pixfra Mile 2 M215 thermal imaging monocular packs a powerful punch for such a compact and lightweight device. With a 256×192, 12μm, <35mK NETD thermal sensor and a powerful 15mm f1.0 objective lens, this monocular will reveal even the smallest heat signature at a range of up to 800m. Plus, with a strong Wi-Fi connection, this device can connect to up to four smart devices, allowing for effortless group sharing at a range of up to 40m. Effortlessly revealing an animal’s important anatomical features in vivid detail crystal-clear, this thermal imaging monocular will present stunning images onto an 800×600, 0.32”, OLED display.

Compact & Slimline Design

The Mile 2 series features a completely new, slimline design which seamlessly incorporates the power button into the Pixfra logo on the side of the device — reducing the number of buttons along the top of the monocular and offering simplified operation of digital functions.

Seamless Connectivity

With a stable and reliable Wi-Fi connection, the Mile 2 M215 will achieve seamless connectivity to a smartphone or tablet via the free Pixfra app for Android and iOS devices. This opens up greater observation capabilities, including group observations via live view on a connected mobile phone or tablet, with a range of up to 40m and the ability to connect to up to four different smart devices at once for simultaneous viewing.

Features

• 256×192,12μm, <35mK NETD thermal sensor
• 15mm f1.0 objective lens
• 800m detection range
• Built-in video recording
• Built-in Wi-Fi
• Seamless connectivity of up to 4 smart devices

  Specification

  Thermal Sensor	256×192, 12μm, <35mK NETD
  Objective Lens	15mm f1.0
  Spectral Range	8 μm–14 μm
  Field of View	H: 11.7°; V: 8.8°/H: 20.5 m; V: 15.4 m (@100 m)
  Focus Control	Fixed-focal
  Close Focus Distance	2.6 m (8.53 ft)
  Detection Range	Up to 800 m
  Magnification	2.33x
  Frame Rate	50 Hz
  Display	800 × 600, 0.32 inch OLED
  Color Palettes	6 (white hot/black hot/iron red/alarm/emerald/amber)
  Video Compression	H.264
  Diopter	–3 D to +1 D
  Eye Relief	13 mm (0.51 inch)
  Exit Pupil	5 mm (0.20 inch)
  Digital Zoom	1×, 2×, 4×, 8×
  Video Recording	Yes
  Still Image Capture	Yes
  Wi-Fi Hotspot	Yes
  Hot Spot Tracking	Yes
  Video Distance Measurement	Yes
  FFC Calibration	Auto, Manual, External Correction
  Standby Mode	Yes
  DPC (Defective Pixel Correction	Yes
  Storage	Built-in 16GB
  Battery Type	Rechargeable Lithium Battery
  Battery Life	8.5 hours (@ 25°C)
  Power Supply	5 VDC/2 A
  Port	USB Type-C
  Overvoltage Protection	Yes
  Operating Temperature	–30 to +55 °C (–22 to +131 °F)
  Operating Humidity	≤95%
  Protection Grade	IP67
  Packaging Dimensions	180.0 mm × 123.0 mm × 96.0 mm (7.09″ × 4.84″ × 3.78″) (L × W × H)
  Product Dimensions	149.0 mm × 56.6 mm × 50.3 mm (5.87″ × 2.23″ × 1.98″) (L × W × H)
  Gross Weight	760 g (1.68 lb)
  Net Weight	270 g (0.60 lb)

  What you get

• Pixfra Mile 2 M215
• USB Type-C Charging Cable
• Wristband
• Lanyard
• Lens Cloth
• Camera Pouch
• Eyeshade
• Quick Start Guide



  Warranty

  This comes with a 3 year warranty from Pixfra. See the User Manual that comes with the Pixfra Mile 2 M215.
